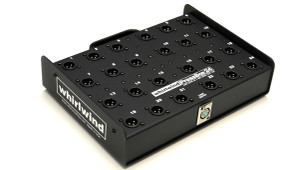

Whirlwind PB06 Press Box - These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.

Whirlwind PB06 Press Box

SKU:
PB06 Press Box
Availability:
2-8 week delivery - Please call +44 (0) 1795 419460 for more information.
£356.88 (Inc. VAT)
£297.40 (Ex. VAT)
(No reviews yet)
Weight:
1,588.00 Grams
Width:
18.00 (cm)
Height:
13.00 (cm)
Depth:
25.50 (cm)
Current Stock:
Adding to cart… The item has been added
Description

These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.

The boxes are constructed with rugged, cold-rolled steel. Available with 6, 12, or 24 outputs.

  • Input Impedance: 2k Ohms
  • Output Impedance: 150 Ohms
  • Operating Level: 0 dB input = -43 dB output
  • Channel-to-channel Isolation:
  • 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs

* Line level signal MUST be provided into these passive press boxes. A microphone directly into the input will not provide enough signal level for proper operation.

Dimensions (Including handle)
Model Length Width Depth
PB06 6.75" 5.5" 2.0"
PB12 11.0" 5.5" 2.0"
PB24 9.5" 11.25" 2.0"
